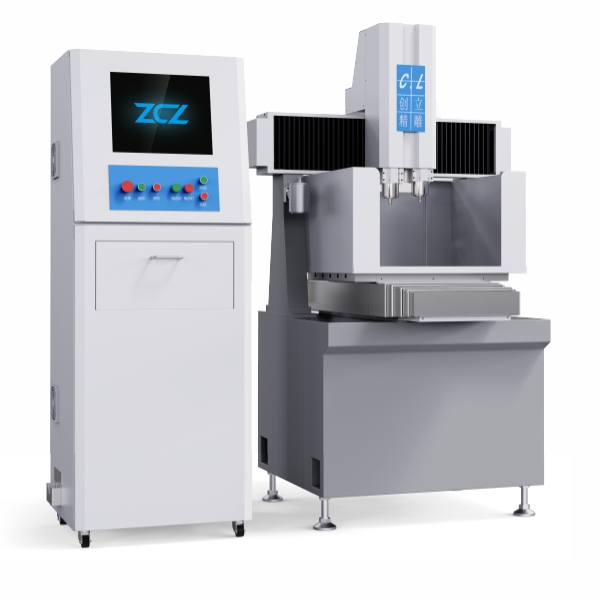

The front and temple of acetate frame has two engraving heads, so it can realize the
simultaneous processing of two pairs and independent double processing. It
is equipped with the independent rotating fourth-spindle for processing of
one-piece end piece position, and the processing is the stereoscopic
engraving surface processing.
Original Delta servo motor*5
Taiwan upper silk screw rod guide rail
Huadiao 0.8KW electric principal axis
4th-axis rotary clamping fixture
Electric lubricating pump
Japan pneumatic components with original packaging
One-piece end piece position, stereoscopic engraving surface processing.
With double heads and double spindles, the processing speed is fast.
It has the fourth-spindle rotating fixture.
| Performance index | standard value |
| Positional accuracy of X/Y/Z axes movement | 0.015mm |
| The accuracy of repetitive positioning of X/Y/Z/A axes | 0.010mm |
| Operating stroke of X/Y/Z axes | 350mm*320mm*150mm |
| Spindle power | 800w×2 |
| Spindle speed | 1000-24000RMP |
| Spindle number | 15M/MIN |
| Shank mode | ER11 |
| Working voltage | 220V/50HZ |
| Driving system | Delta servo x5 shaft |
| Operating system | New generation system +hand box |
| Air pressure | 0.6MPA |
| Machine tool weight(KG) | 1300KG |
| Machine dimension | 1380*1100*1850mm |
