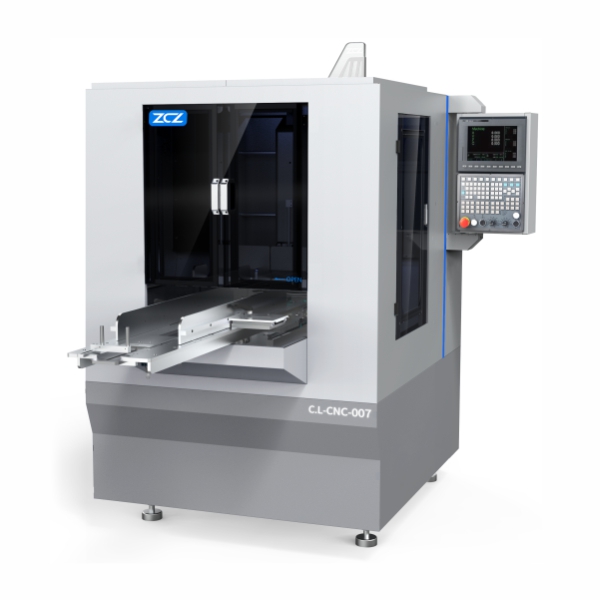

Equipped with 3 sets of machine heads, fully automatic cutting and planing, multiple processes such as milling vertical surfaces, chamfering, slotting, etc. can be completed in one time, saving time, improving efficiency and accuracy. Equipped with automatic sorting and picking temple function, the processed materials are classified and placed in the material tray, and equipped with CCD to automatically identify and cutting materials. It is also the best choice for high-definition material cutting.
Original DELTA servo motor
SYNTEC system +hand box
Temple planning horizontal machine head
Left and right discharging device
Cutting temple vertical head
Automatic loading device
Taiwan HIWIN screw and guide rail with original packaging
It can realize the automatic cutting and temple planning.
It can save labor and moule, safe and reliable.
The precision is high, and the finish is good.
Automatic sorting of left-right temple.
It can be automatic recognition and cutting by CCD image.
| Performance index | standard value |
| Positional accuracy of X/Y/Z axes movement | 0.015mm |
| The accuracy of repetitive positioning of X/Y/Z/A axes | 0.010mm |
| Operating stroke of X/Y/Z axes | 500mm*500mm*200mm |
| Spindle power | 1.5w×2/1.5KW×3 |
| Spindle speed | 1000-24000RMP |
| Spindle number | 20M/MIN |
| Shank mode | ER16 |
| Working voltage | 220V/50HZ |
| Driving system | Delta servo x5 shaft |
| Operating system | SYNTEC system +hand box |
| Air pressure | 0.6MPA |
| Machine tool weight(KG) | 2000KG |
| Machine dimension | 1450*1550*1850mm |
